Vacuum Casting

To provide more reliable and high-end prototypes, we are offering Vacuum Casting services for our clients. It is a mid-to-low production method capable of producing high-quality and cosmetic finish designs in the shortest turnaround time. In addition, we are offering diversified services for making great quality prototypes in both low and large volumes from the soft silicone mould.
The method of Silicone mould is better than injecting mould. We ensure to deliver quicker and cheaper soft moulds. The polyurethane parts produced by rapid prototyping from the vacuum casting process are precise and of superior quality with higher performance.

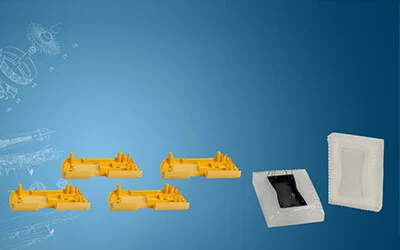

vacuum casting

How it works?

The polyurethane vacuum die casting process consists of three steps-

  • Designing the master plan-The master plan is prepared by subtractive manufacturing processes and additive manufacturing processes or CNC machining by our expert professionals.

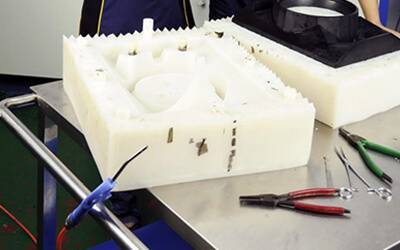

  • Creating the mould –The experts put the master pattern into a casting frame and then fill it with silicone material to shape a mould. Then the mould is cut into halves, and then the master pattern is removed, creating a cavity to cast parts.
  • Casting products– We inject the liquid polyurethane material into the silicone mould accurately. Then the silicone mould has to be placed in the vacuum chamber. As soon as the mould hardens, the halves are set apart and cast under vacuum pressure. Around 15- 20 copies can be cast through the casting process repeatedly.

Common Applications of Vacuum Casting Process

Consumer Testing– Vacuum casting process facilitates consumer testing process. Using a physical concept model, consumer testing becomes feasible. The polyurethane caste parts offer advantages of production-level performance, rapid turn-around, competitive cost, precise dimension, and cosmetic routine. Hence, they are ideal for consumer testing.

vacuum-casting
vaccum-casting

Low-volume manufacturing– A method that supports low volume production at cost-effective prices is ideal for clients. The vacuum casting process is relatively swift, and the silicone molds can be made in a short lead time. The process offers low volume production with a quick turnaround and affordable pricing.

Rapid Prototyping– Rapid prototyping is not a complicated process with a vacuum casting process. A silicone cast mould lasts longer and is very economical. It can be easily customized by creating designs as much needed. We also pour different polyurethane materials in the same mould to make it cost-effective. It saves client’s time in testing designs with a wide range of materials.

Vacuum Casting

Vacuum casting tolerances
The finished dimensions of vacuum casting parts depend upon the accuracy of the masterpiece, casting material and cast structure. A standard of +_ 0.25% tolerance is expected.

Vacuum Casting materials
We offer hundreds of materials to meet the personalized and unique needs of the clients. The high-quality casting polymers can fulfil the industry-specific requirements. Materials like titanium, stainless steel, polymer materials, aluminium,

Benefits of Vacuum Casting

Time saver– A silicone mould can cast up to 15-20 parts. The process of casting is relatively quick, cheap and time-saving. The vacuum casting process is soft tooling which is more affordable than complex tooling.

Speed– The moulds can be prepared within two days and the polyurethane parts can be made within 1-2 weeks. The time frame also depends upon the order volume.

Quality of production– The polyurethane cast parts offer highly reliable and cosmetic performance.

Lower cost– A silicone mold is highly durable for 15-20 parts. The process is quite affordable for mid-to-low production volumes. The production ranges from 1to 100 pieces of details.

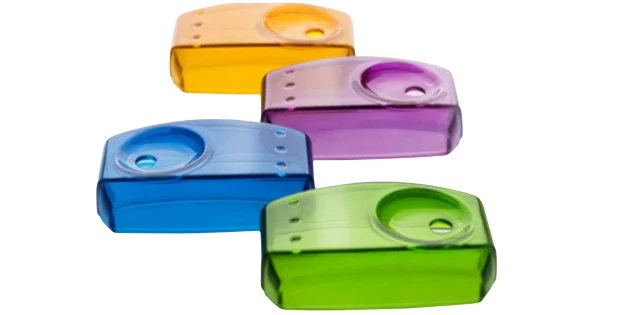

Wide range of finishes– We offer to get a wide range of colour options like black, clear, RAL color matching. You also get a wide range of options for custom surface finishes like sandblasting, plating and painting.

vacuum-casting

Vacuum casting solution for different industries-

vacuum-casting

Robotics– Our solutions offer a one-stop-shop for the robotics industry. We complete the projects within the deadline with strict tolerances and reliable materials. Furthermore, we ensure to deliver parts with customization and flexibility.

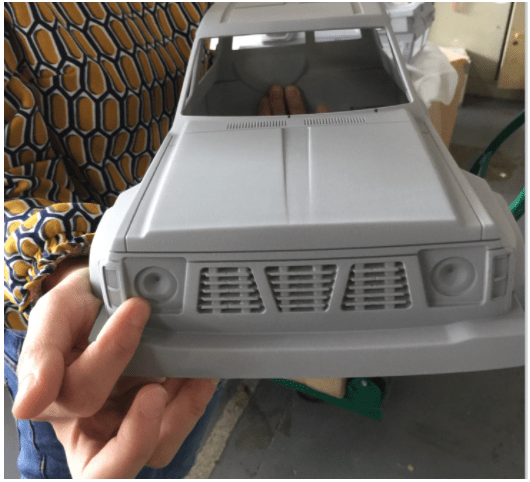

Automotives– We provide customized services to the automotive industry by offering rapid prototyping, mass production with materials like polymers and aluminium.

vacum-casting

Mining-We support mining applications characterized by high temperature and wear, and corrosion. We provide technical expertise and experience in rapid prototyping, improved performance, and longer product life.

vacuum-casting
vacuum-casting

Industrial– Many industries adopt additive manufacturing and vacuum casting processes to produce end-use parts, tooling, spare parts, etc.

vacuum-casting

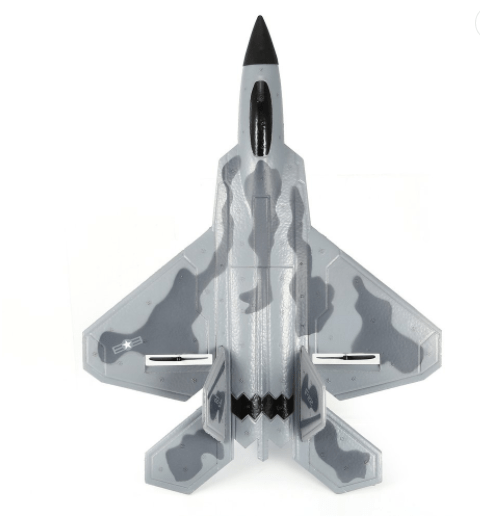

Aviation– Aerospace and Aviation industry is a one-stop-shop for the aerospace and aviation industry. Materials like titanium and stainless steel are ideal for the aviation industry.

The electronics-Electronic communication industry can produce electronic products with the use of rapid prototyping and rapid tooling services.

vacuum-casting

Gaming Industry– The gaming industry is growing exponentially. With rapid prototyping, the game makers can create more reliable and finished characters and enhance their skills.

vacuum-casting
vacuum-casting

Rail and Metro-To improve the rail and metro sector. The vacuum casting process and additive manufacturing process have created great scope for creating quick prototypes, parts, and end-use parts.

vaccum-casting

Marine– The marine industry is highly demanding. With rapid prototyping and vacuum casting process, parts and customized designs can be created with high accuracy and preciseness.

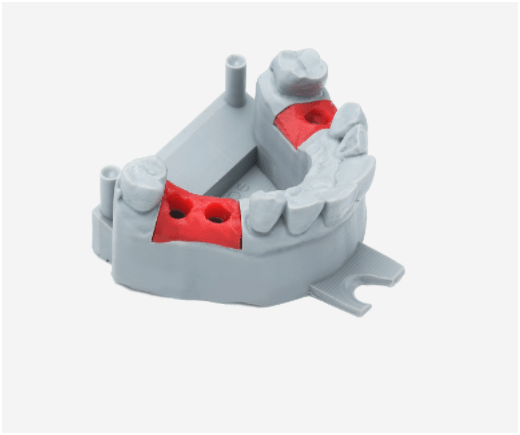

Medical– The Medical industry is one of the fastest-growing industries. We offer specialized additive manufacturing services designing medical devices, prosthetics and bio printing.

vaccum-casting
